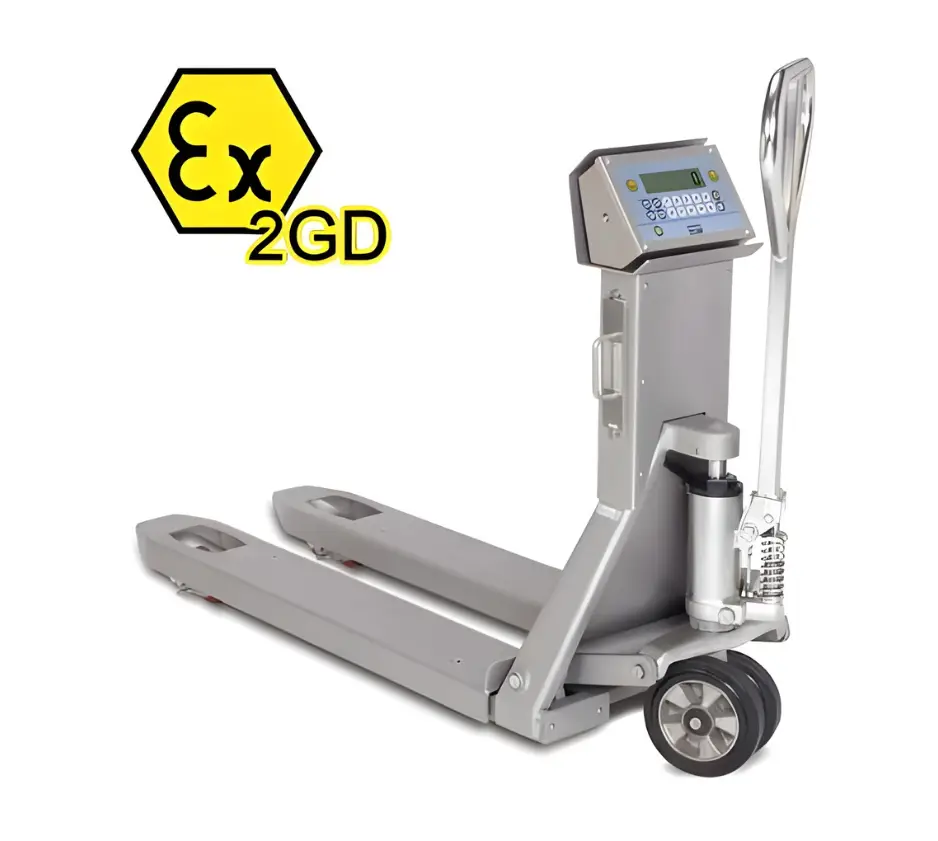

Atlas TPWX2GDI ATEX Pallet Truck Scale

AISI 304 stainless steel pallet truck scale for use in ATEX hazardous areas 1 & 21 & 2 & 22, with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection modes. Available in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

Pallet truck scale with thick stainless steel structure, entirely manufactured in Italy.
Lifting pump manufactured entirely in Italy, available on request for lifting up to 3,000 kg.
Made with ATEX certified Dini Argeo components.
Weight indicator with waterproof casing in IP65 STAINLESS STEEL, easy to clean and resistant in harsh and corrosive environments.
The large 25mm LCD display allows viewing even in low light conditions.
Available in approved version for legal-for-trade use.
Extractable battery, rechargeable in safe area, connectable and disconnectable to the weighing system even in hazardous area.
Autonomy of 150 hours approximately, or 24/7 with optional second rechargeable battery.
Fitted with 4 Dini Argeo Atex certified IP68 stainless steel load cells.
Each pallet truck is tested and supplied with calibration certificate to guarantee the declared accuracy.
Special non-standard dimensions available on estimate.

Up to 140 packs per minute high-speed performance
±1 mm labelling accuracy for precise placement
3D camera system for automatic package recognition
SmartHead thermal bar with real-time print quality feedback
Supports up to 4 printers in modular configuration
Designed for irregular and complex product shapes

Description
Reviews (0)

Description

Maximum lifting capacity: 2.000 kg; special capacities on request, up to 3.000 kg.
Resolution:
> internal use: 0,2 / 0,5 kg
> approved: 0,5 / 1 kg
Accuracy (weighing of goods on Europallet with distributed load):
> internal use: +/- 1 kg
> approved: according to CE certification (Directive 2014/31/EU)
Calibration and Set-Up parameters configurable from keyboard.
