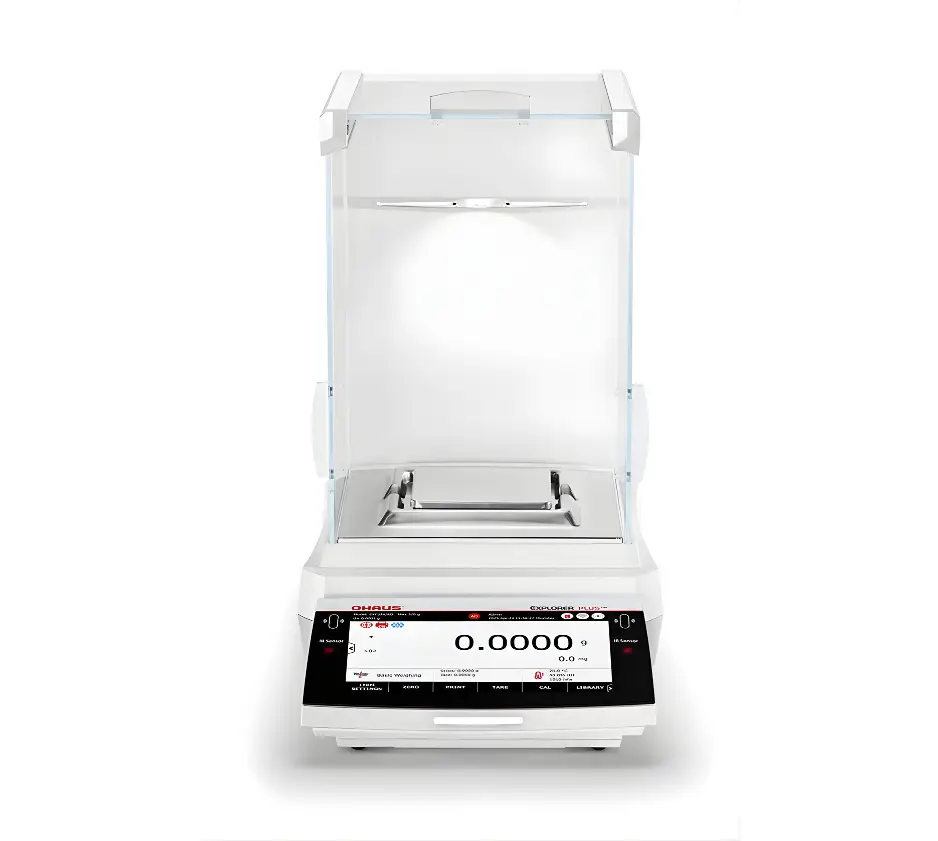

Ohaus Explorer Plus Analytical

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.

Built-in automatic calibration ensures consistent and accurate results
Touchless sensors improve hygiene and ease of operation
Ventilated weighing pan enhances stability and measurement accuracy
High-speed digital load cell delivers fast and reliable data
Large 7-inch glass touchscreen for easy and intuitive operation
Digital leveling system for precise setup and accuracy
Simplified data management for smooth workflow handling
Quick and effortless installation saves time
Chemical-resistant design for durability in demanding environments
Supports HID connection to PC or keyboard without needing drivers
Offers 2-way communication for better control and data exchange
Multiple connectivity options including RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer

Up to 140 packs per minute high-speed performance
±1 mm labelling accuracy for precise placement
3D camera system for automatic package recognition
SmartHead thermal bar with real-time print quality feedback
Supports up to 4 printers in modular configuration
Designed for irregular and complex product shapes

Description
Reviews (0)

Description

Applications

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold

Display

7-inch TFT 16.7M Color Touch Screen with Glass Overlay

Operation

AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A

Communication

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status lights

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries
